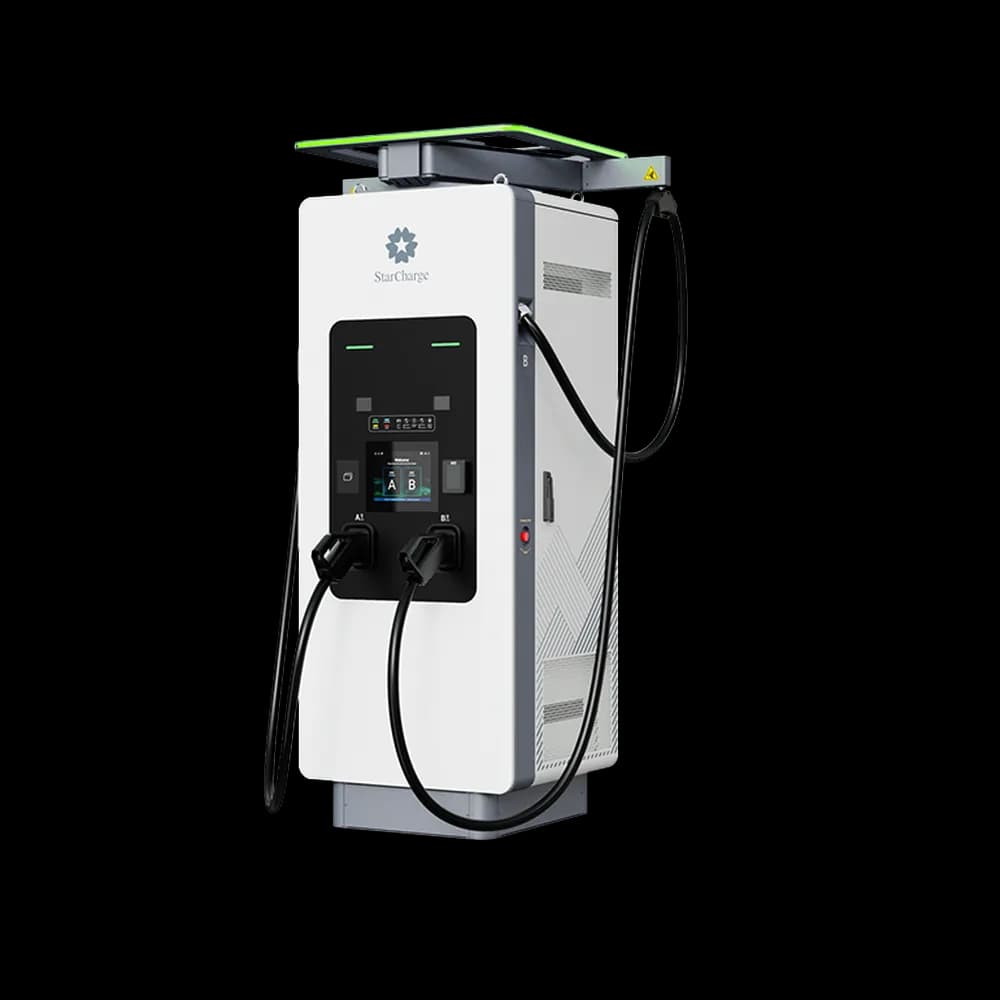

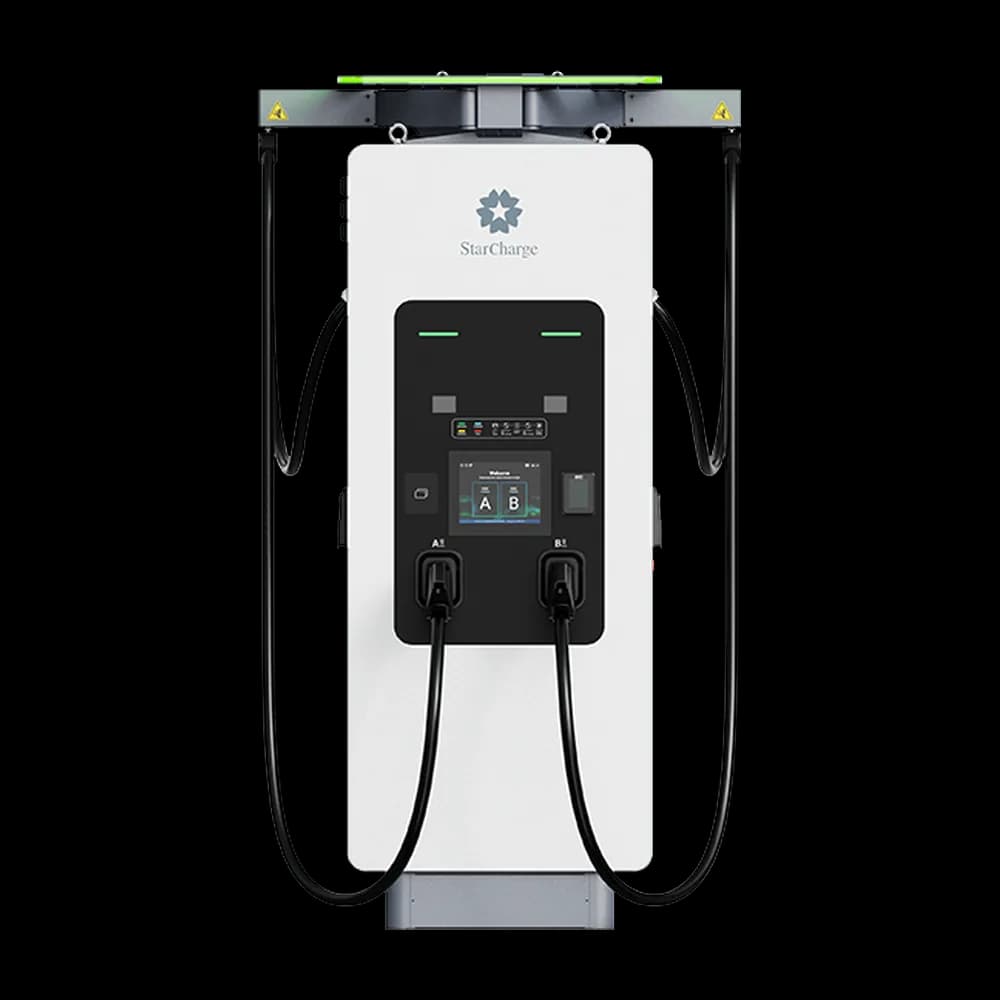

Titan V4
All the power. All in one.
A 320 kW dual-CCS2 all-in-one DC charger with 97% peak efficiency, a 500 A maximum per connector and optional swing-arm cable management.
Key facts
- Maximum output
- 320 kW
- Maximum output current
- 500 A
- Peak efficiency
- 97 %
- Connectors
- 2 × CCS2
Highlights
97% efficiency, 500 A
Peak efficiency of 97% with a 300 A rated and 500 A maximum output.
150–1000 V DC output
Compatible with most EVs on the market.
Cable management
Optional swing-arm CMS with about 3 m of operating range.
Top light
Optional top light for clearer status indication across the forecourt.
Any OCPP backend
OCPP 1.6J with dynamic load management; OCPP 2.0 can be added with a future update.
Payment terminal ready
RFID card, app and an optional payment terminal.
Our biggest all-in-one.
- 97% peak efficiency
- 500 A maximum output
- Optional swing-arm cable management
- Optional status top light
- Payment terminal ready
Technical specifications
| Version | 320 kW | |
|---|---|---|
| Input | Input rating | 400 V AC ±15%, 3-phase, 50/60 Hz, L1+L2+L3+PE+N |
| Input current | 481 A AC | |
| Power factor | ≥0.99 at full load | |
| Peak efficiency | 97% | |
| Output | Output interface | CCS2 + CCS2 |
| Output power | 320 kW max. | |
| Output voltage | 150–1000 V DC | |
| Output current | 300 A rated, 500 A max. | |
| Interface | Display | 10.4-inch touch screen |
| Language | English (others on request) | |
| Buttons | Emergency button | |
| User authentication | RFID card, app, payment terminal (optional) | |
| RFID reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 | |
| Connectivity | Network | 4G, Wi-Fi, Ethernet |
| Backend protocol | OCPP 1.6J (OCPP 2.0 can be added with a future update) | |
| EV protocol | DIN 70121, ISO 15118 | |
| Environment | Operating temperature | −30 to +50 °C (derating above 50 °C) |
| Storage temperature | −40 to +70 °C | |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m | |
| Corrosion class | C3-M | |
| IP / IK rating | IP55 / IK10 (screen IK08) | |
| Cooling | Forced air | |
| Mechanical | Cable length | 5 m |
| Cable management | Swing-arm version (optional); 5 m cable → approx. 3 m operating range | |
| Dimensions (W × H × D) | 800 × 2050 × 750 mm; 1259 × 2225 × 800 mm with CMS | |
| Weight | Approx. 410 kg excl. power modules; CMS approx. 36 kg; top LED light approx. 15.5 kg; approx. 17 kg per power module | |
| Installation | Ground mounting | |
| Compliance | Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
| Version | 320 kW |
|---|---|
| Input | |
| Input rating | 400 V AC ±15%, 3-phase, 50/60 Hz, L1+L2+L3+PE+N |
| Input current | 481 A AC |
| Power factor | ≥0.99 at full load |
| Peak efficiency | 97% |
| Output | |
| Output interface | CCS2 + CCS2 |
| Output power | 320 kW max. |
| Output voltage | 150–1000 V DC |
| Output current | 300 A rated, 500 A max. |
| Interface | |
| Display | 10.4-inch touch screen |
| Language | English (others on request) |
| Buttons | Emergency button |
| User authentication | RFID card, app, payment terminal (optional) |
| RFID reader | ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693 |
| Connectivity | |
| Network | 4G, Wi-Fi, Ethernet |
| Backend protocol | OCPP 1.6J (OCPP 2.0 can be added with a future update) |
| EV protocol | DIN 70121, ISO 15118 |
| Environment | |
| Operating temperature | −30 to +50 °C (derating above 50 °C) |
| Storage temperature | −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m |
| Corrosion class | C3-M |
| IP / IK rating | IP55 / IK10 (screen IK08) |
| Cooling | Forced air |
| Mechanical | |
| Cable length | 5 m |
| Cable management | Swing-arm version (optional); 5 m cable → approx. 3 m operating range |
| Dimensions (W × H × D) | 800 × 2050 × 750 mm; 1259 × 2225 × 800 mm with CMS |
| Weight | Approx. 410 kg excl. power modules; CMS approx. 36 kg; top LED light approx. 15.5 kg; approx. 17 kg per power module |
| Installation | Ground mounting |
| Compliance | |
| Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.
Approvals
Certified for the Thai market on top of CE-RED and CB.
- CE-RED
- CB
- NBTC
- PTEC
- PEA list
Long-run
support.
A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
