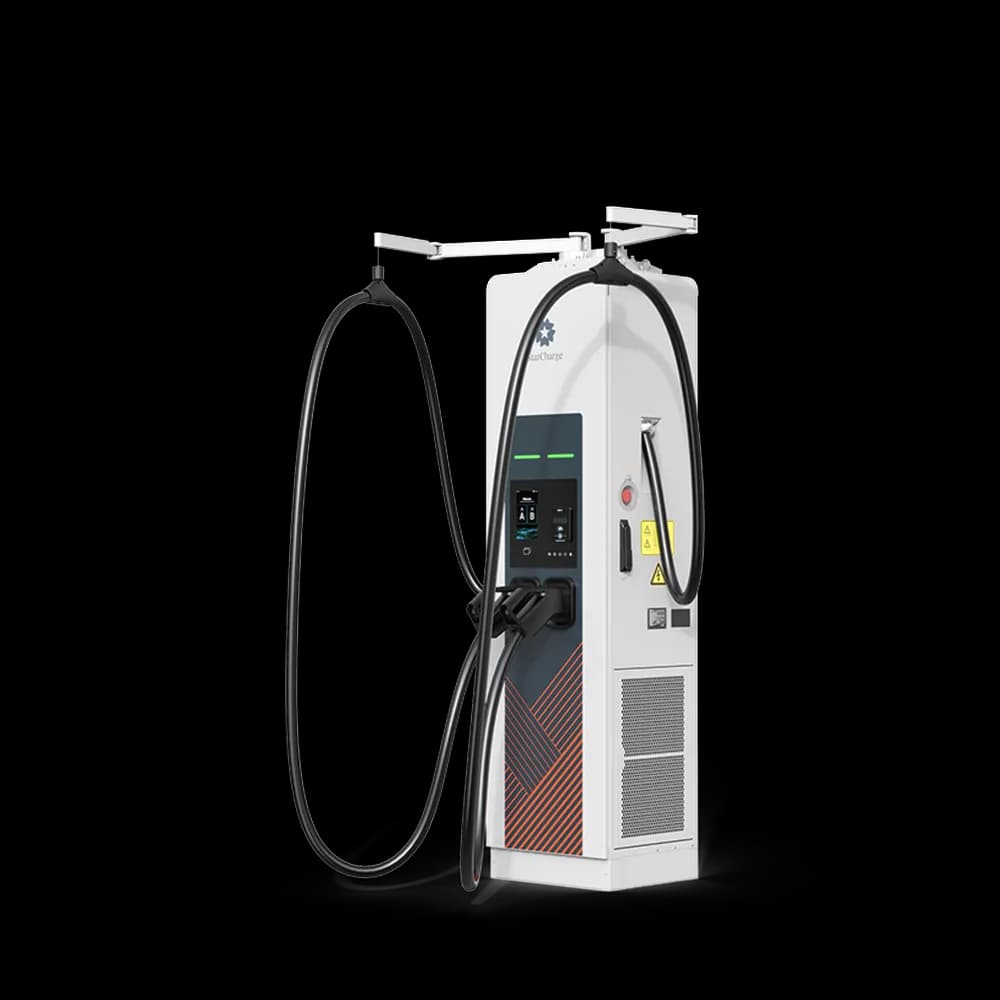

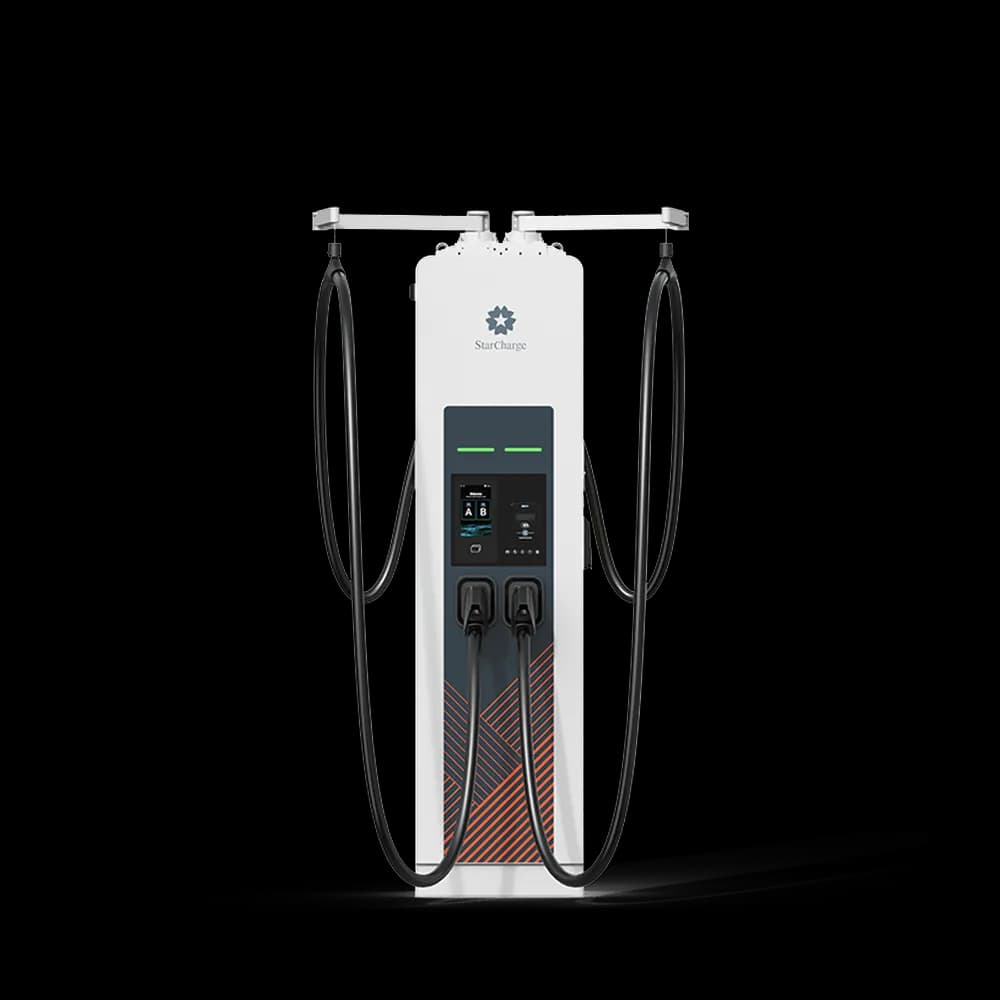

Hydrus Plus
Our most powerful connector.
The highest-current connector in the range: a liquid-cooled dual-CCS2 dispenser fed by a power cabinet, with a 600 A rated and 800 A maximum output.
Key facts
- Maximum output current
- 800 A
- Connectors
- 2 × CCS2
- Maximum output voltage
- 1000 V
- Dispenser weight, without CMS
- 198 kg
Highlights
800 A maximum
600 A rated and 800 A maximum DC output current per connector.
Liquid-cooled
Liquid cooling for sustained high-current sessions.
Slim, smart design
A slim dispenser that fits at the kerb, 500 mm wide.
150–1000 V DC output
A wide output voltage range for today's and tomorrow's vehicles.
Cable management
User-friendly cable management system keeps the 5 m cable off the ground.
Cabinet-fed
Pairs with the Nova V4, Nova V5 or Nereus 720 LC power cabinet.
Keeps its cool at 800 A.
- 600 A rated per connector
- Slim 500 mm profile
- 150–1000 V DC output
- Cable kept off the ground
- Fed by a Nova or Nereus cabinet
Technical specifications
| Version | Hydrus Plus | |
|---|---|---|
| Power | Auxiliary input | 230 V AC ±10%, 50/60 Hz, single-phase (L+N+PE) |
| Charging interface | CCS2 + CCS2 | |
| Output voltage | 150–1000 V DC | |
| Output current | 600 A rated (800 A max.) | |
| Metering | CE meter | |
| Interface | Screen | 7-inch touch screen |
| Status / button | LED indicator; emergency stop button | |
| User authentication | RFID card, QR code, app (optional), free charging, MAC | |
| Connectivity | Connectivity | Ethernet |
| EV protocol | DIN 70121, ISO 15118 | |
| Environment | Operating / storage temperature | −30 to +50 °C / −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m | |
| Corrosion class | C3-M | |
| IP / IK rating | IP55 / IK10 (screen IK08) | |
| Cooling | Liquid cooling | |
| Mechanical | Cable length | 5 m |
| Dimensions (W × H × D) | 500 × 1900 × 450 mm without CMS | |
| Weight | 198 kg without CMS | |
| Installation | Ground mounting | |
| Compliance | Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
| Version | Hydrus Plus |
|---|---|
| Power | |
| Auxiliary input | 230 V AC ±10%, 50/60 Hz, single-phase (L+N+PE) |
| Charging interface | CCS2 + CCS2 |
| Output voltage | 150–1000 V DC |
| Output current | 600 A rated (800 A max.) |
| Metering | CE meter |
| Interface | |
| Screen | 7-inch touch screen |
| Status / button | LED indicator; emergency stop button |
| User authentication | RFID card, QR code, app (optional), free charging, MAC |
| Connectivity | |
| Connectivity | Ethernet |
| EV protocol | DIN 70121, ISO 15118 |
| Environment | |
| Operating / storage temperature | −30 to +50 °C / −40 to +70 °C |
| Humidity / altitude | 5–95% non-condensing / ≤2000 m |
| Corrosion class | C3-M |
| IP / IK rating | IP55 / IK10 (screen IK08) |
| Cooling | Liquid cooling |
| Mechanical | |
| Cable length | 5 m |
| Dimensions (W × H × D) | 500 × 1900 × 450 mm without CMS |
| Weight | 198 kg without CMS |
| Installation | Ground mounting |
| Compliance | |
| Standards | IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU |
| Certification | CE-RED, CB, NBTC, PTEC, PEA list |
Values from the StarCharge Thailand datasheets, September 2026. Figures on the StarCharge website may differ.
Approvals
Certified for the Thai market on top of CE-RED and CB.
- CE-RED
- CB
- NBTC
- PTEC
- PEA list
Long-run
support.
A charger is a 10-year decision. Terros installs, maintains and supports every model in Thailand.
